ES Series

ES-3322

Professional staging solution with 705 sq ft deck area. Perfect for concerts, events, and productions requiring portable, reliable staging.
ES-3322 Documentation
ES-3322 SpecificationsES-3322 Rigging GuideES-3322 Banners GuideES-3322 Certifications
General Documentation
EuroStage Materials SpecsEuroStage Quick GuideEuroStage Stairs Certifications

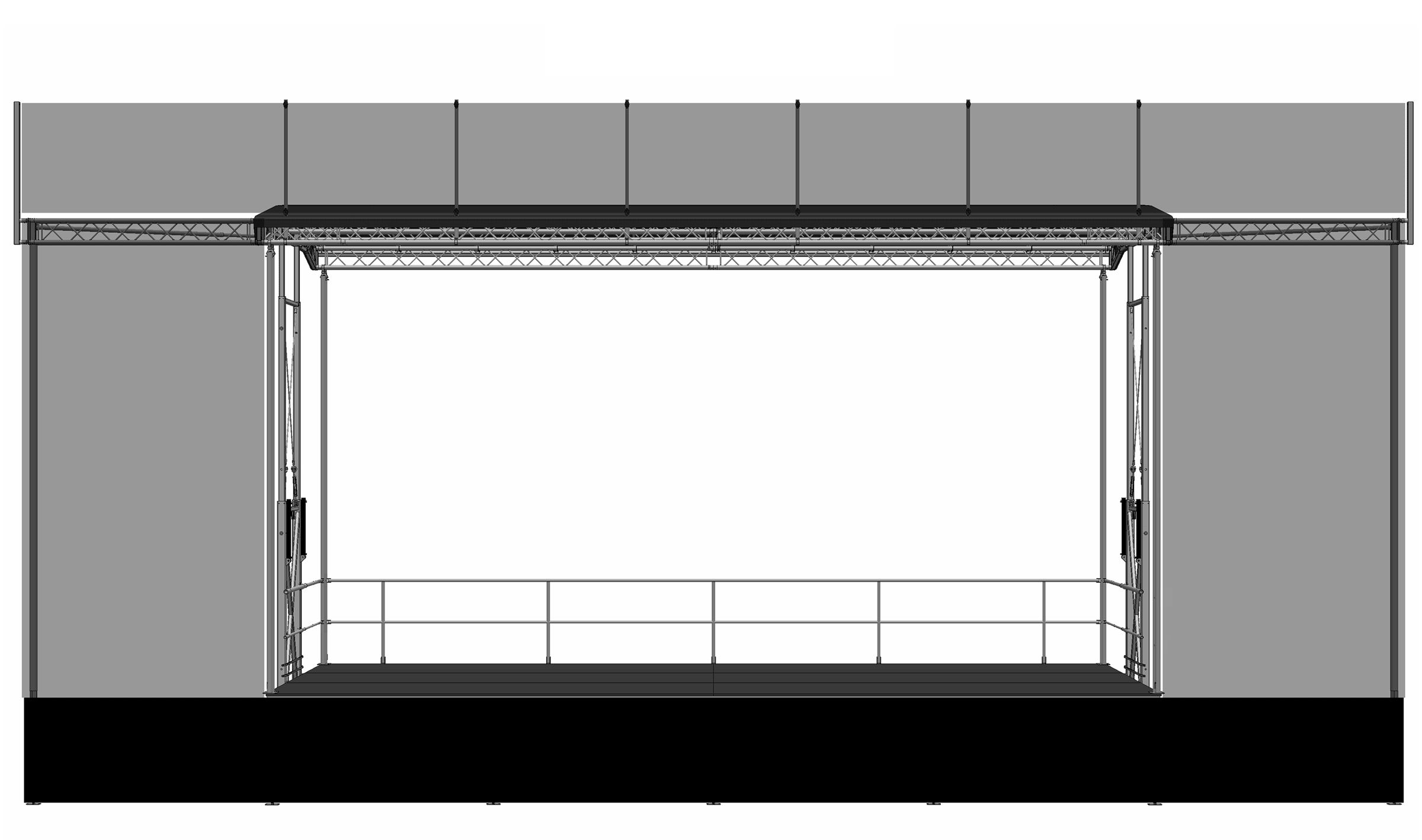

ES-3322

ES-3322 Stage Gallery

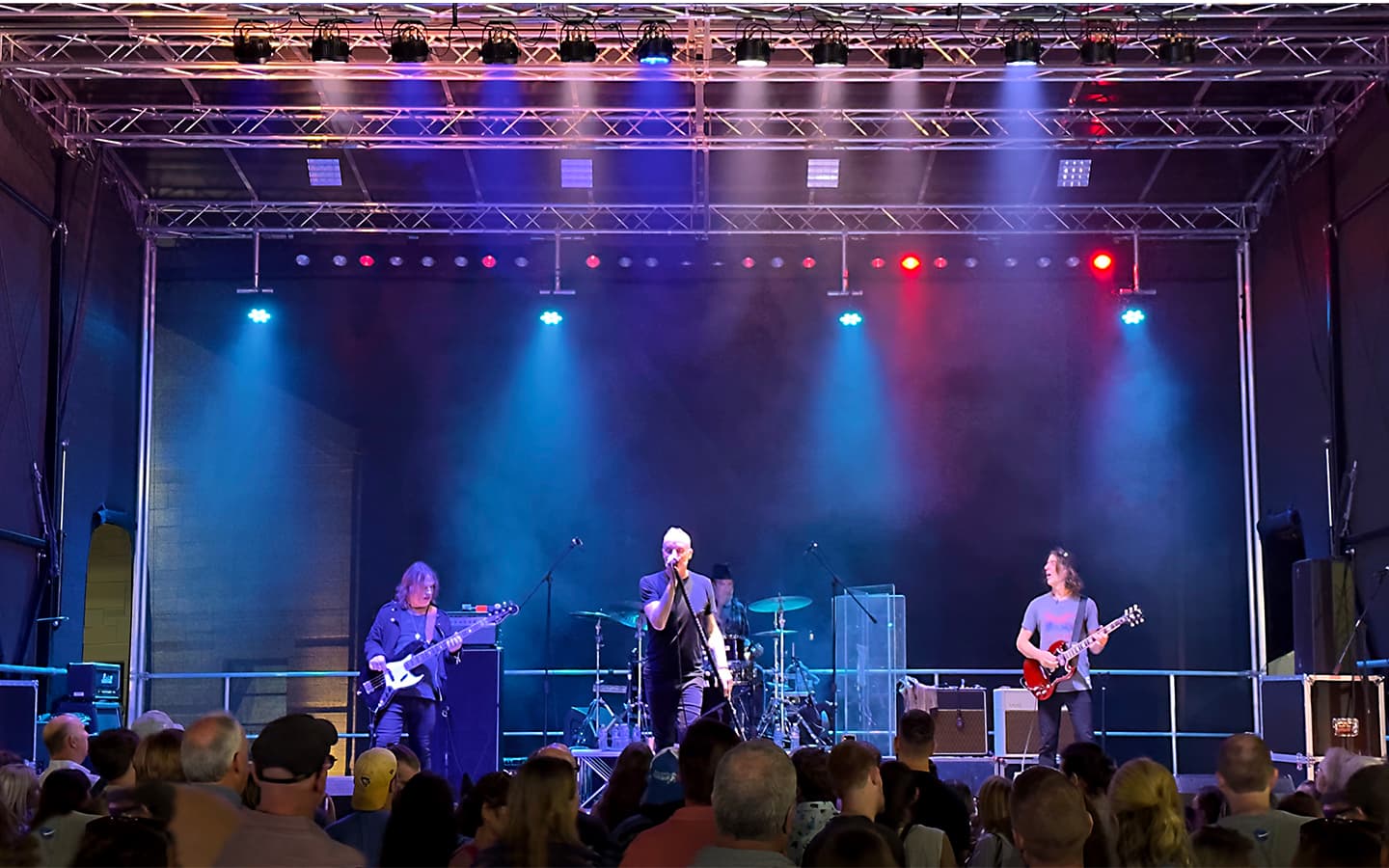

3322 EuroStage MP 3322 Spin Dr

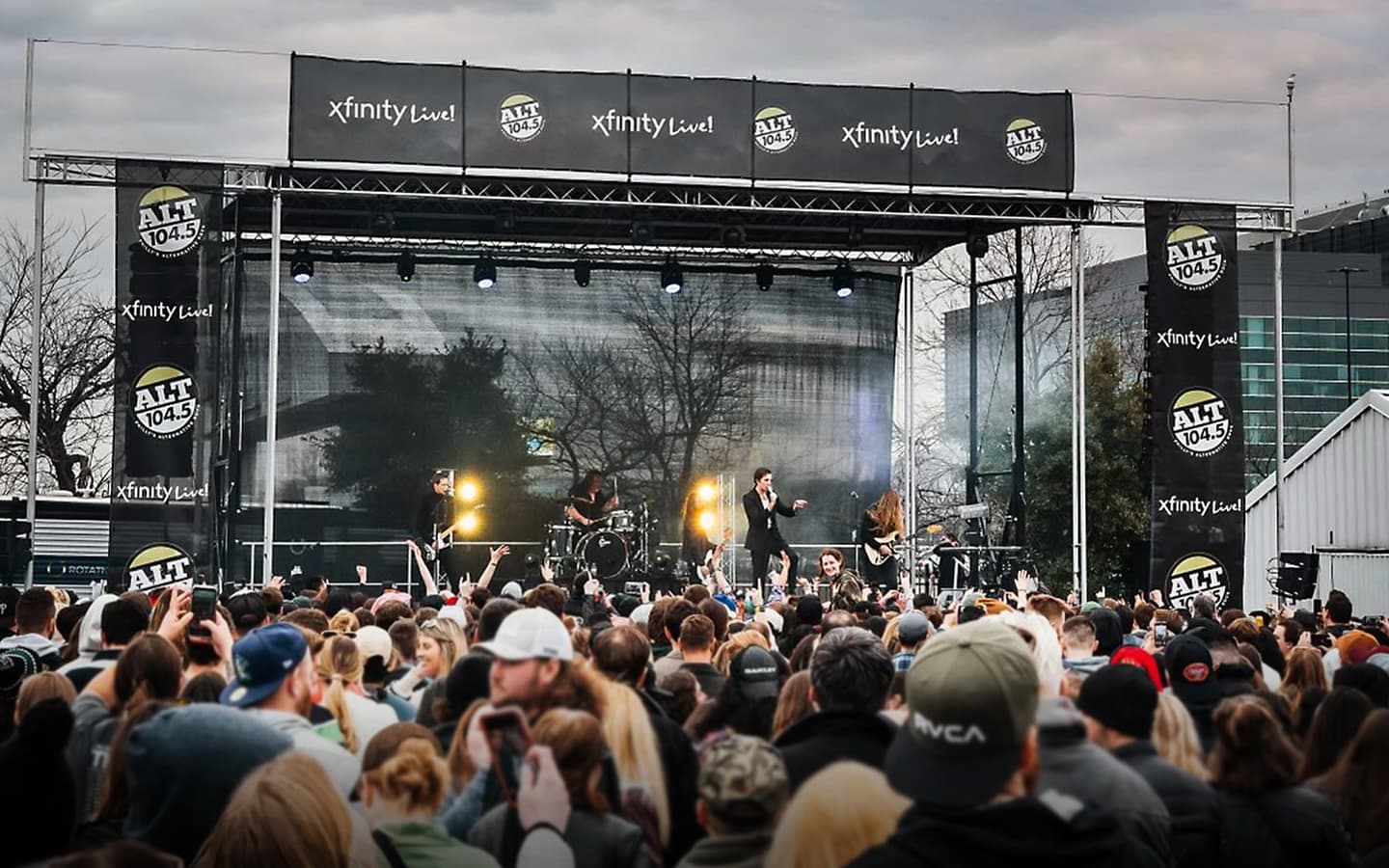

3322 EuroStage MidAt 3322 3
3322 EuroStage MidAt 3322 2

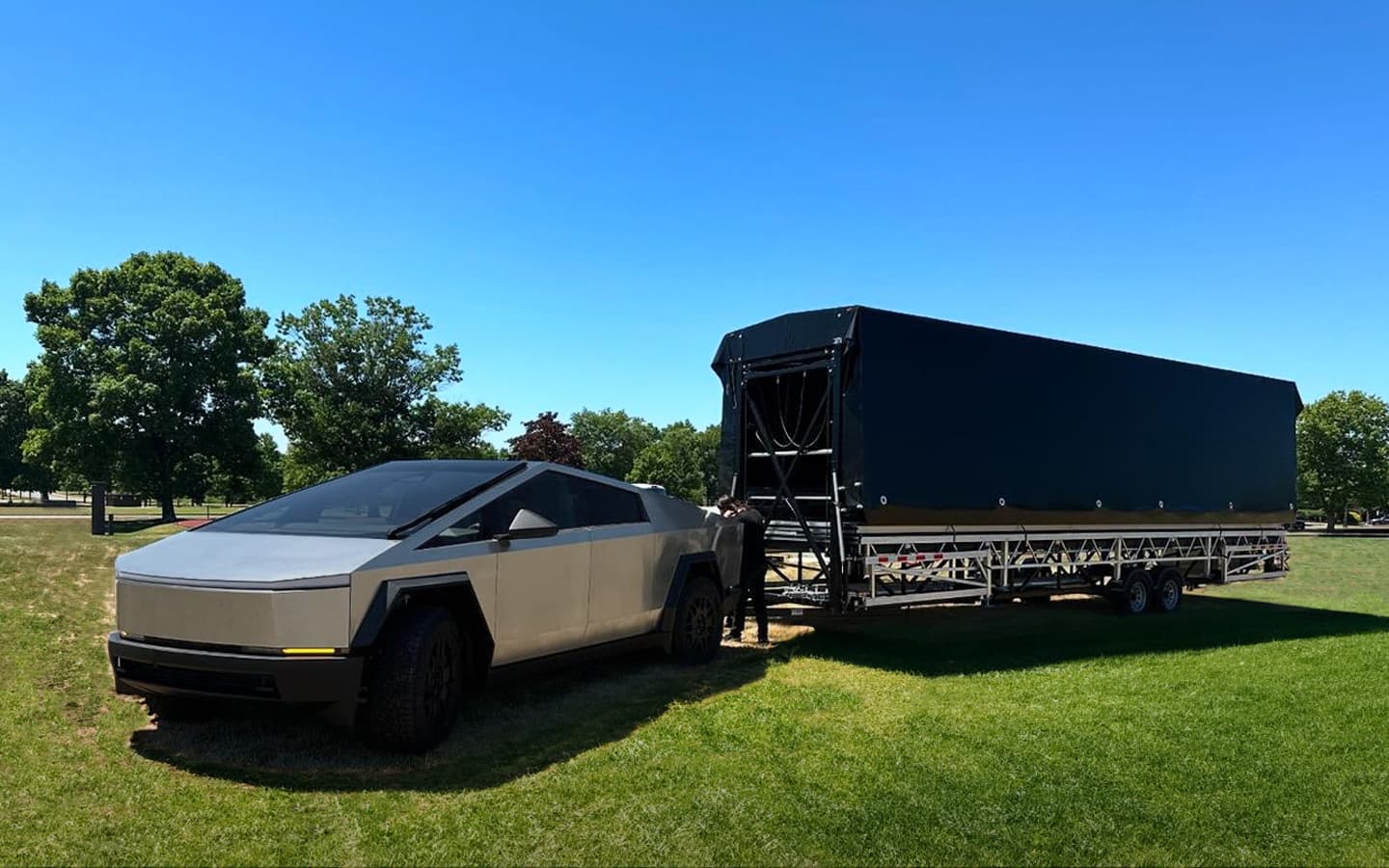

3322 EuroStage MidAt 3322 1

Technical Specifications

Deck Specifications

Width32' 9"
Depth21' 6"
Square Footage705 sq ft
Deck to Truss Height17' 0"
Deck Height Range3' 6"- 5' 0"

Load Capacity

Front Truss1000 lbs UDL
Center Truss1200 lbs UDL
Back Truss1000 lbs UDL
Roof Capacity6800 lbs UDLxUDL
Lifting Capacity2000 lbs UDLxUDL

Additional Specifications

Setup Time

30-45 minutes

Trailer Weight

7490 lbs

Back Truss Support

Yes

Ready to Get Started?

Contact our team to discuss your staging requirements and get a custom quote for the ES-3322.
