ES Series

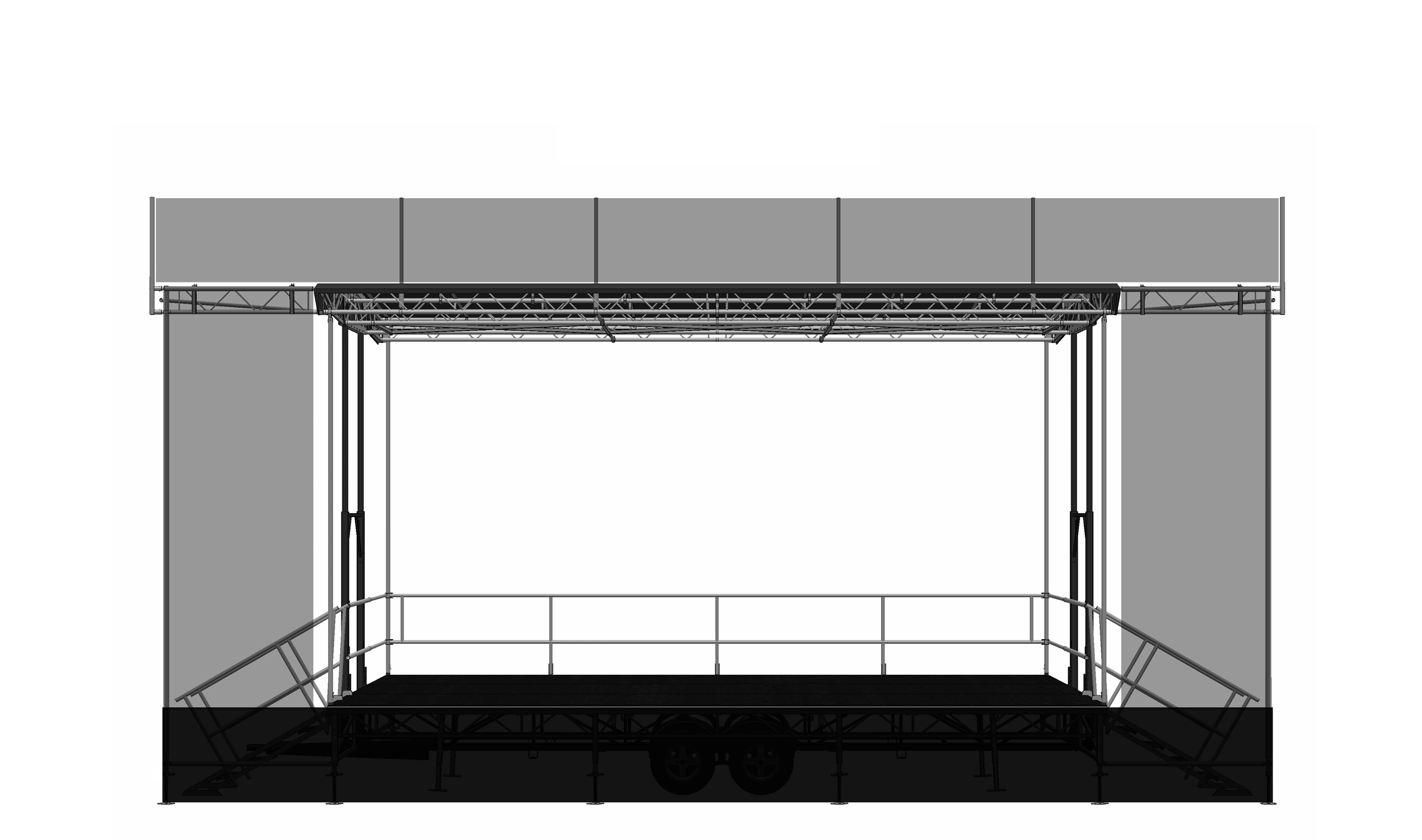

ES-2620

Professional staging solution with 518 sq ft deck area. Perfect for concerts, events, and productions requiring portable, reliable staging.
ES-2620 Documentation
ES-2620 SpecificationsES-2620 Rigging GuideES-2620 Banners GuideES-2620 Certifications
General Documentation
EuroStage Materials SpecsEuroStage Quick GuideEuroStage Stairs Certifications
ES-2620

ES-2620 Stage Gallery

2620 EuroStage MP 2620 Short Banner

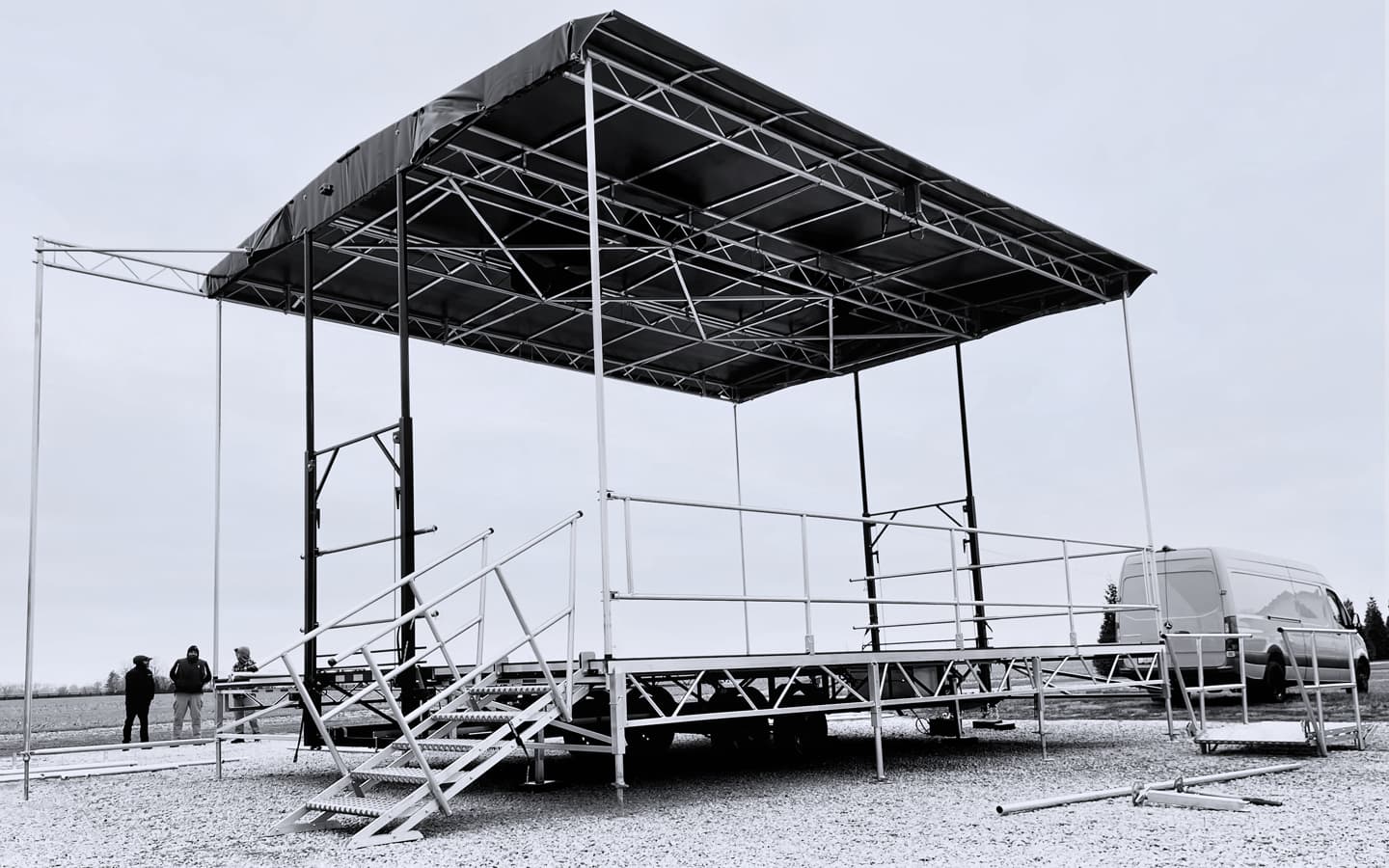

2620 EuroStage JC 2620 Deliver

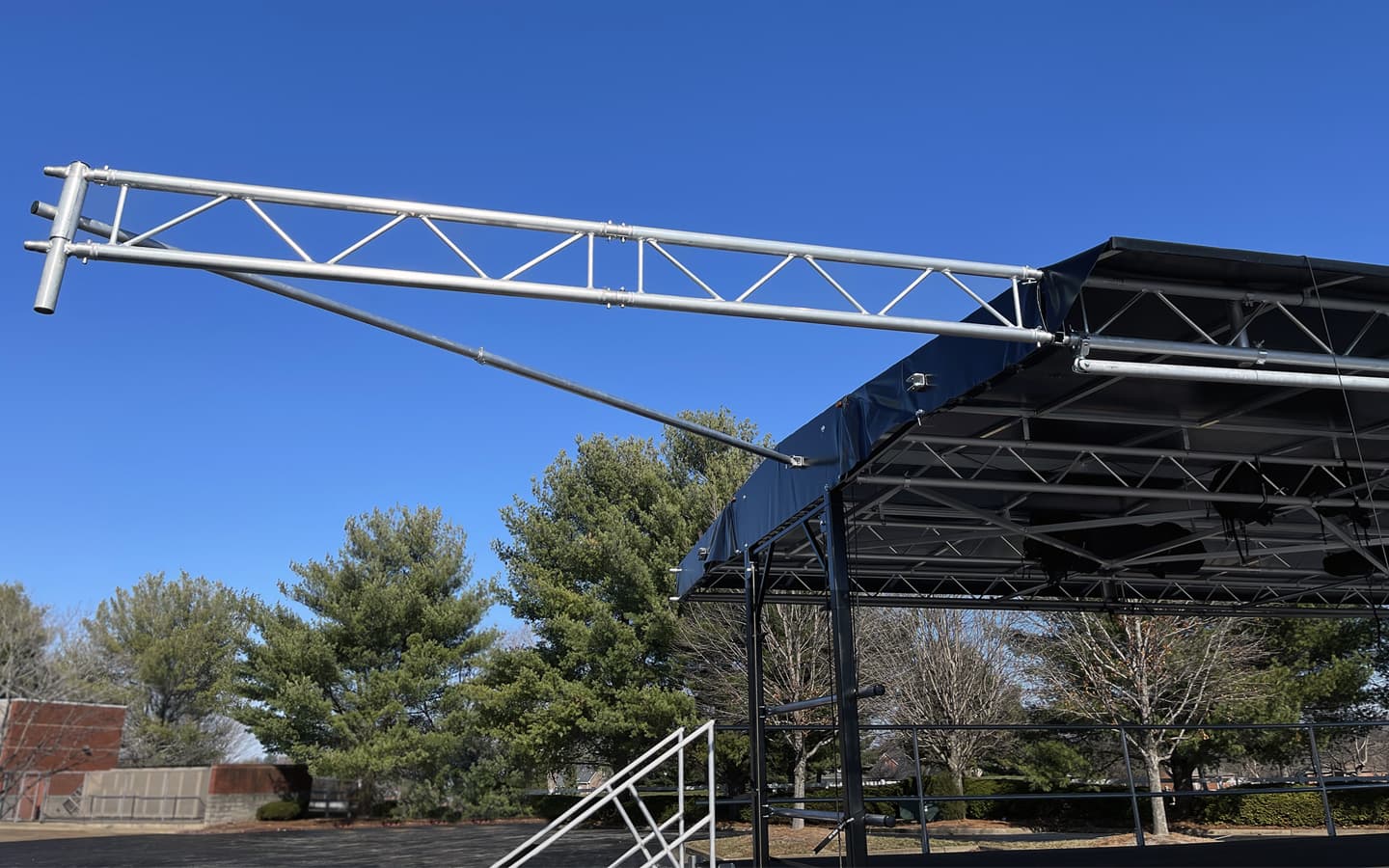

2620 EuroStage Factory 2620 Flybay
2620 EuroStage For 2620 Wall

Technical Specifications

Deck Specifications

Width26' 3"
Depth19' 9"
Square Footage518 sq ft
Deck to Truss Height13' 3"
Deck Height Range3' 6"- 4' 6"

Load Capacity

Front Truss825 lbs UDL
Center Truss825 lbs UDL
Back Truss825 lbs UDL
Roof Capacity4800 lbs UDLxUDL
Lifting Capacity2000 lbs UDLxUDL

Additional Specifications

Setup Time

15-30 minutes

Trailer Weight

5375 lbs

Back Truss Support

Yes

Ready to Get Started?

Contact our team to discuss your staging requirements and get a custom quote for the ES-2620.
