ES Series

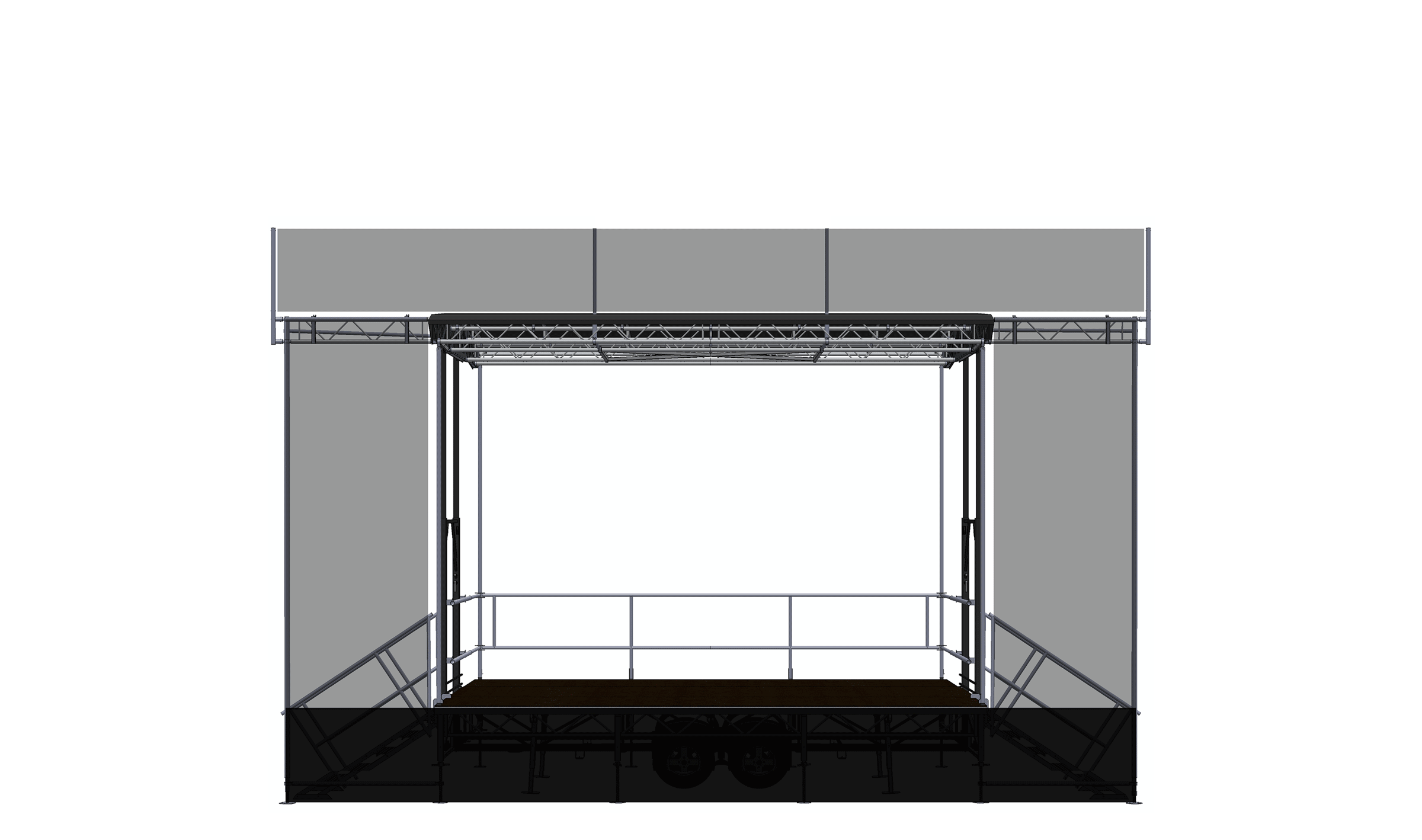

ES-2016

Professional staging solution with 318 sq ft deck area. Perfect for concerts, events, and productions requiring portable, reliable staging.
ES-2016 Documentation
ES-2016 SpecificationsES-2016 Rigging GuideES-2016 Banners GuideES-2016 Certifications
General Documentation
EuroStage Materials SpecsEuroStage Quick GuideEuroStage Stairs Certifications
ES-2016

ES-2016 Stage Gallery

2016 EuroStage Factory 2016 Demo
2016 EuroStage MP 2016 NCM
2016 EuroStage AT 2016 Mtns

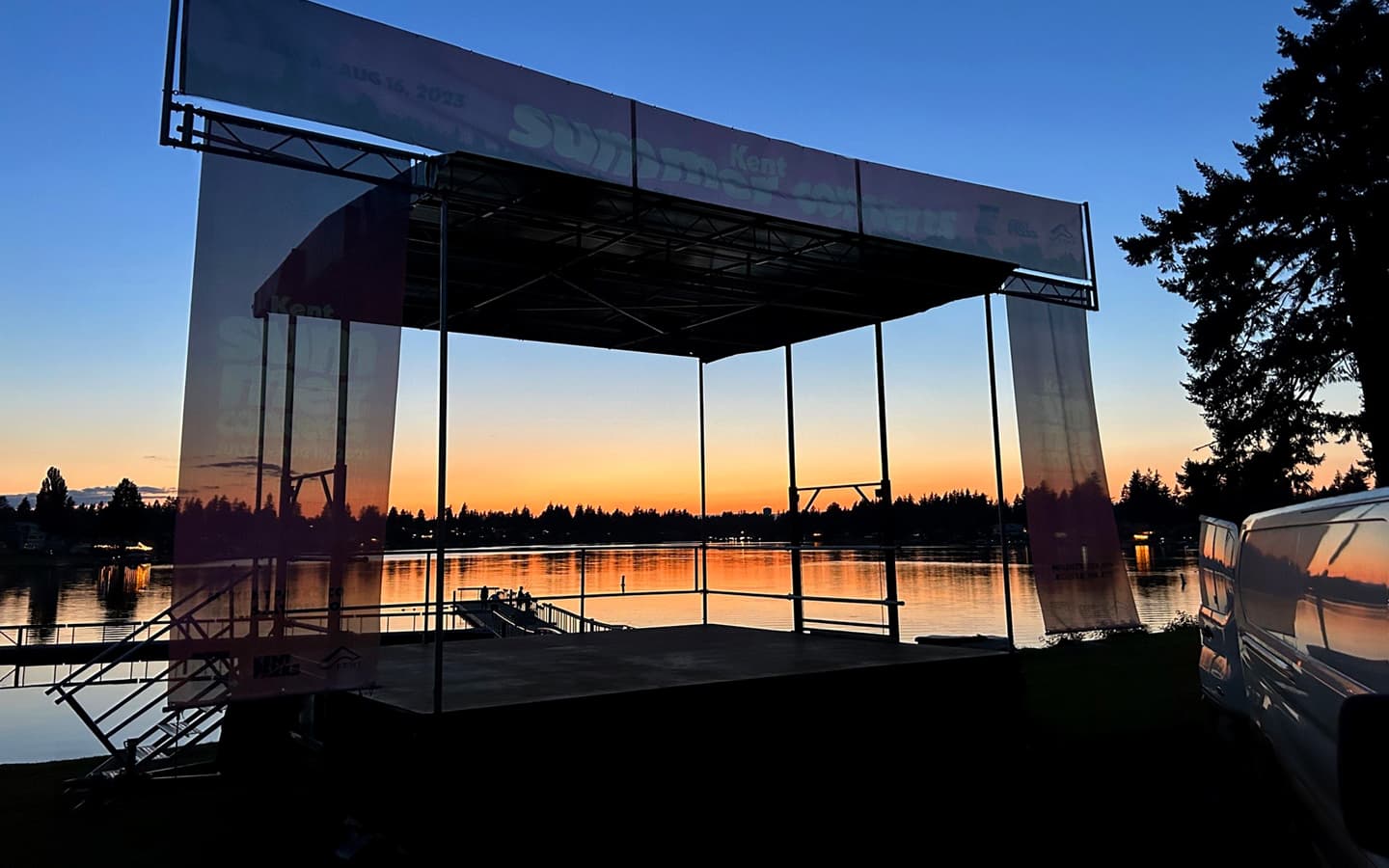

2016 EuroStage AT 2016 Lake

Technical Specifications

Deck Specifications

Width19' 3"
Depth16' 6"
Square Footage318 sq ft
Deck to Truss Height13' 3"
Deck Height Range3' 6"- 4' 6"

Load Capacity

Front Truss825 lbs UDL
Center Truss825 lbs UDL
Back Truss825 lbs UDL
Roof Capacity4800 lbs UDLxUDL
Lifting Capacity2000 lbs UDLxUDL

Additional Specifications

Setup Time

15-30 minutes

Trailer Weight

4375 lbs

Back Truss Support

Yes

Ready to Get Started?

Contact our team to discuss your staging requirements and get a custom quote for the ES-2016.
Request QuoteView All Stages
